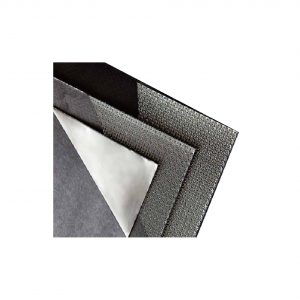

Flexible Graphite Sheet / Roll
General Features
Quality flake graphite has been chemically treated, expanded at high temperature, and rolled. It has excellent sealing properties, high temperature resistance, corrosion resistance, resistance to radiation, low creep relaxation rate, and excellent flexibility. It is the basic material for making graphite composite plates, graphite strips, fillers, and gaskets. Operating temperature: -196°C～600°C(in air), -196°C～3000°C(non-oxidized medium)
Description
Product Specifications
| Thickness (mm) | width (mm) | length (m) | density (g/cm3) | |
|---|---|---|---|---|
| coiled | Plates | 100～1524 | ≤910 | 0.4-1.5 |
| 0.1-1.6 | 0.1-3.2 | |||
Usage
Applicable to media such as acid, alkali, steam, various solvents and oils. The pure graphite gasket can be directly used for the sealing of flanges, observation holes, water level gauges, box covers and other parts under low pressure conditions.
Main Performance
| Item | DP1101 | DP1102 | DP1103 | DP1104 | DP1107 |
|---|---|---|---|---|---|
| Carbon content % | ≥99.5 | ≥99 | ≥99 | ≥99 | ≥99 |
| Sulphur content PPM | ≤200 | ≤500 | ≤1000 | ≤1200 | ≤1200 |
| chlorine content PPM | ≤30 | ≤50 | ≤50 | ≤50 | ≤50 |
| Density deviation g/cm3 | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| thickness deviation mm | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Tensile strength MPa | ≥4.5 | ≥4.5 | ≥4.0 | ≥4.0 | ≥4.0 |
| Compression % | 35-55 | 35-55 | 35-55 | 35-55 | 35-55 |
| Rebound rate % | ≥9 | ≥9 | ≥9 | ≥9 | ≥9 |
| Loss % | ≤0.5(450°C) | ≤1.0(450°C) | ≤1.0(450°C) | ≤1.0(450°C) | ≤12(670°C) |
| stress relaxation rate % | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 |
Transportation and Storage
Must be protected from rain and moisture during transportation.
Store in a clean, dry warehouse.
